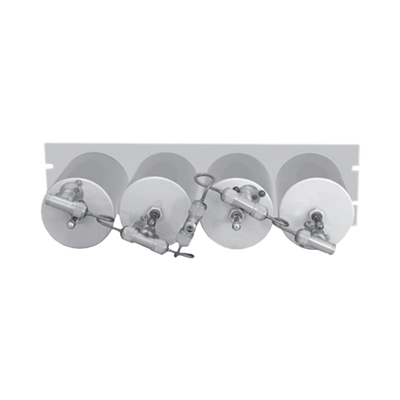

TPRD-8644-TELEWAVE, INC-Duplexer Compacto Pasa Banda-Rechazo de Banda, 806-869 MHz, 4 Cav. (4″ por Lado) 45 MHz, 1.0 dB, 250 Watt, N Hembras.

SKU: TPRD-8644 Categorías: Duplexers, Filtros y Sistemas para RF, Radiocomunicación Brand: TELEWAVE, INC

$104,743.20 MXN IVA incluido+ Envío Gratis

Agotado

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Duplexer Compacto Pasa-Banda-Rechazo de Banda para 806-869 MHz.

Rango de Frecuencia: 763-769 MHz.
Separación TX-RX (Min.): 30 MHz (764-806 Mhz) / 45 MHz (806-869 MHz).
Cavidades: 4 (4″ x lado).
Impedancia: 50 Ohm.
Potencia de Entrada (max.): 250 Watt.
Pérdida por Inserción: 1.0 dB.
Aislamiento TX-RX (@ 5 MHz sep.(min.): 70 dB.
VSWR (max.): 1.5:1
Conectores: N Hembra.
Dimensiones: 483 x 133 x 267 mm.
Peso: 9.6 Kg.
Rango de Temperatura: -35 a +70 °C.

Información adicional

Peso	8.3 kg
