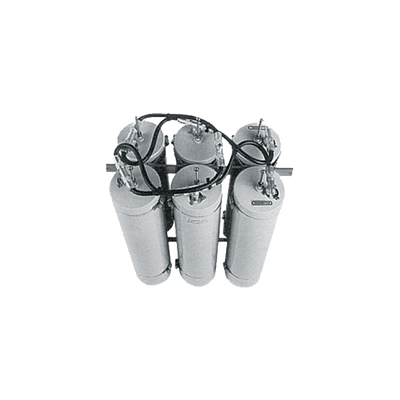

TPRD-1556-TELEWAVE, INC-Duplexer Pasa-Banda-Rechazo de Banda, 148-174 MHz, 6 Cavidades (5″Dia.) 400 kHz, 2.0 dB, 350 Watt, N Hembras.

SKU: TPRD-1556 Categorías: Duplexers, Filtros y Sistemas para RF, Radiocomunicación Brand: TELEWAVE, INC

$149,981.92 MXN IVA incluido+ Envío Gratis

Agotado

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Duplexer Pasa Banda / Rechazo de Banda, 148-174 MHz, 6 Cav., 350 Watt.

Rango de Frecuencia: 148-174 MHz.
Numero de cavidades: 6 (5" Diámetro).
Seperación TX-RX: 400 KHz.
Pérdida por inserción (max.): 2 dB.
Potencia de Entrada (max.): 350 Watt.
Aislamiento: 100 dB @ 400 kHz.
VSWR (max.): 1.5:1
Conectores: N Hembra.
Dimensiones (Alto x Ancho x Fondo): 710 x 483 x 280 mm.
Peso: 12.3 kg.

*Pregunte por tiempo de entrega.

Información adicional

Peso	17.4 kg

TWDS-6025
