PROSECA-01 - PROSECA-01-EPCOM POWERLINE-Par de Conectores Macho-Hembra para Módulos Fotovoltaicos tipo MC-4 - Relematic.mx - PROSECA01-p

Thumbnail

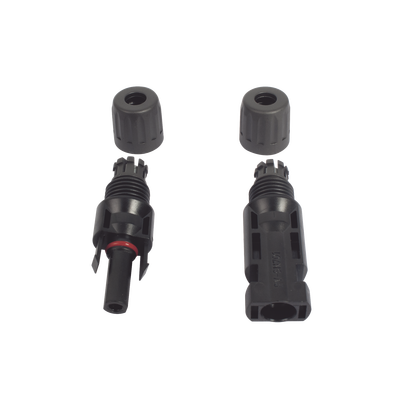

PROSECA-01-EPCOM POWERLINE-Par de Conectores Macho-Hembra para Módulos Fotovoltaicos tipo MC-4

EPCOM POWER LINE

SKU: PROSECA-01 Categorías: ---, ---, --- Brand: EPCOM POWER LINE

$48.73 MXN IVA incluido+$99.49 MXN de envio

Agotado

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Conectores tipo MC4 para Módulos Fotovoltaicos

Con una excelente resistencia UV, que permite ser
utilizado en ambientes severos. La conexión del cable es
fácil de instalar y funciona como candado para evitar falsos
contactos.

PROSECA01

Especificación técnica:
• Tensión máxima de trabajo: 1000 Vcd.
• Corriente nominal: 30 A.
• Clase de la llama: UL94-V0.
• Grado de contaminación: 2.
• Resistencia de contacto: ≤5 mmΩ.
• Grado de protección: IP67.
• Especificación de la línea de conexión: 4 mm2.
• Rango de temperatura ambiente: -40 a 90 ºC.
• Nivel de seguridad: clase II.
• Fuerza de inserción: ≤50 N.
• Fuerza de extracción: ≥50 N.

Para el ponchado es recomendable utilizar la EPMC4

GARANTIA.

1 Año contra defectos de fabricacion.

Información adicional

Peso	0.01 kg

CONECTORES PROSE
