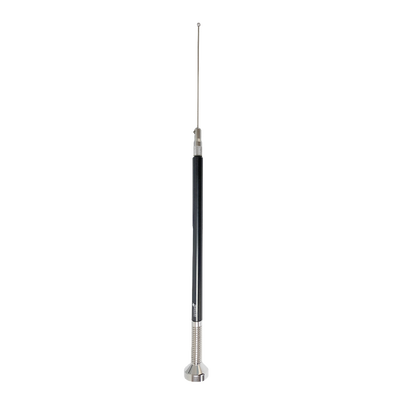

MUF4800-PCTEL-No Ground Plane Elevated Feed Point Antenna, Frequency 480-512 MHz, Unity Gain

Descripción

The elevated feed point antennas are designed for those applications that lack a ground plane. They are ideal for mirror or trunk lid mounting applications or for vehicles with non-metallic surfaces where no ground plane is available.

Features

• Elevated feed point eliminates vehicle “shadow” effect.
• Does not require a ground plane; excellent for non-metallic vehicles.
• Stainless steel shock spring included on all models Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts.
• Optional “push pin” mount contact interface on select models.

Technical Data
• Maximum Power:
125 watts (all models, except 4000 series)
200 watts (UHF series models)
• Polarization: Vertical
• Nominal Impedance: 50 ohms
• VSWR: < 1.5:1
• Radiator Material: .100” diameter stainless steel; bright or black finish
• Spring: Stainless steel; bright or black finish
• Phasing Coil Housing:
UHF models: Molded polymer jacket with bright or black chrome plated brass bushing
700, 800 & 900 MHz models: Molded polymer jacket with copper, nickel and chrome plated brass bushing
• Rod Ferrule: 5/16”-24 thread; bright or black chrome plated brass
• Body: Molded polymer

Specifications

• Model: MUF4800
• Frequency Range: 480-512 MHz
• Factory Tuned Frequency: UHF Antennas are field tunable within the specified frequency range
• Gain: Unity
• Rod/Coil Type: Straight
• Antenna Height at lowest frequency: Approximately 18”
