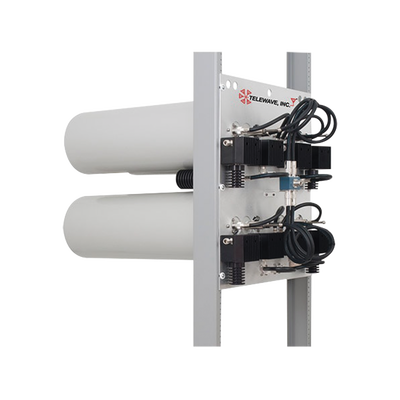

M108-150-5TPM-TELEWAVE, INC-Combinador en Panel para Rack 19″, 148-174 MHz, 5 Canales (8″Diam.) 125 kHz Sep. 115 Watt, N Hembras.

SKU: M108-150-5TPM Categorías: Combinadores, Filtros y Sistemas para RF, Radiocomunicación Brand: TELEWAVE, INC

$501,633.82 MXN IVA incluido+ Envío Gratis

Agotado

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Combinador en Panel para Rack 19″, 148-174 MHz, 5 Canales, 125 KHz, 115W.

Rango de frecuencia: 148-174 MHz.
Numero de canales: 5 (8″ Diámetro).
Wattmetro Opcional en Panel para Monitoreo de Potencia Entrada / Salida.
Rack (TBR-7219) Opcional de 19″ para su Montaje.
Potencia de Entrada: 115 Watt.
Impedancia / VSWR de entrada (típica): 50 Ohm / 1.25:1
Aislamiento entre TX-TX: 75 dB
Aislamiento Antena-TX: 70 dB.
Separación TX-TX (min.): 125 kHz.
Cargas: 60 W para la segunda etapa del aislador (100 W opcional).
Temperatura de Operación: -30°C a +60°C.
Conectores: N Hembra (Entrada / Salida).
Dimensiones del Panel (Alto x Ancho x Fondo): 533 x 483 x 66 mm.

*Pregunte por Tiempo de Entrega.
