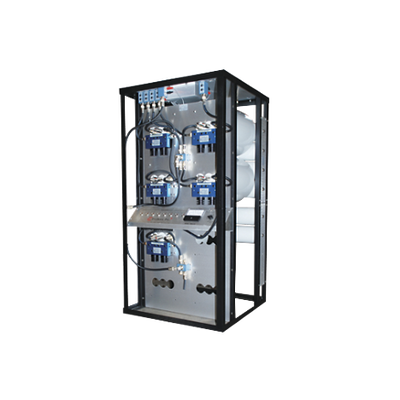

M101-450-7TRM-TELEWAVE, INC-Combinador en Rack 24″, 400-512 MHz, 7Can.(10″Dia.) 250 KHz Tx-Tx, Monitor/Pot. 150 Watt, N Hembras.

SKU: M101-450-7TRM Categorías: Combinadores, Filtros y Sistemas para RF, Radiocomunicación Brand: TELEWAVE, INC

$758,042.31 MXN IVA incluido+ Envío Gratis

Agotado

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Combinador en Rack 24", 400-512 MHz, 7 Canales, 250 KHz Tx-Tx, 150 Watt.

Rango de Frecuencia: 400-512 MHz.
Número de Canales: 7.
Tamaño de Cavidades: 10" Diámetro (1/4 de Onda).
Wáttmetro en Panel para Monitoreo de Potencia.
Separación entre Canales (mín.): 250 kHz.
Potencia de Entrada (máx): 150 Watts por Canal.
Impedancia / VSWR de Entrada (típica): 50 Ohm / 1.25:1
Pérdida por Inserción por Canal: 2.8 dB a 275 kHz de Separación.
Aislamiento entre Tx-Tx (típica): 80 dB.
Aislamiento entre Antena-Tx (típica): 75 dB.
Supresion de 2ª Harmónica (típica): 90 dB.
Temperatura de Operación: -30ºC a + 60ºC.
Montaje / Conectores: Montaje en Rack 24" / N Hembra.
Dimensiones (Alto x Ancho x Fondo): 122 x 61 x 61 cms.
Peso: 68.1 kg.

*Pregunte por Tiempo de Entrega.
