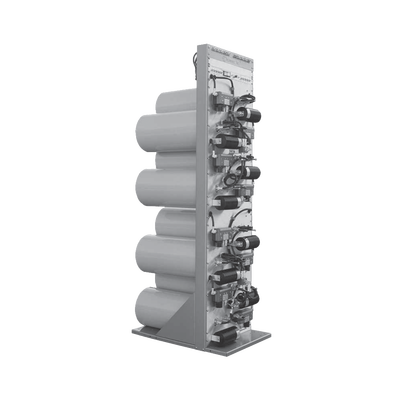

M101-150-8TRM19-TELEWAVE, INC-Combinador TELEWAVE en rack 19″, 148-174 MHz, 8 Canales, 105 kHz de Sep. 125 Watt, 10″ Diam, N Hembras.

SKU: M101-150-8TRM19 Categorías: Combinadores, Filtros y Sistemas para RF, Radiocomunicación Brand: TELEWAVE, INC

$1,308,214.60 MXN IVA incluido+ Envío Gratis

Agotado

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Combinador TELEWAVE para 148-174 MHz, 8 Canales, montado en rack 19″.

Rango de frecuencia: 144-174 MHz.
Numero de canales: 8
Wattmetro en panel para monitoreo de potencia para entrada / salida.
Montaje de rack de 19″ con cavidades de 1/4 de onda.
Pérdida por inserción de 3.8 dB máxima.
Potencia de entrada de 125 W.
Aislamiento entre Tx-Tx de 75 dB y 55 dB entre antena-TX.
Separación de 105 kHz mínimo entre Tx-Tx.
Cargas de 60 W para la segunda etapa del aislador (100 W opcional).
Conectores N Hembra (8), rack EIA 19″ x 72″ (para 8 canales).

* Pregunte por tiempo de entrega.

Información adicional

Peso	25.5 kg

TWDS-1011
