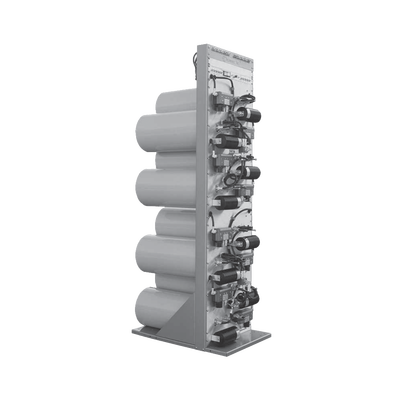

M101-150-4TRM19-TELEWAVE, INC-Combinador TELEWAVE en rack 19″, 148-174 MHz, 4 Canales, 105 kHz de Sep. 125 Watt, 10″ Diam, N Hembras.

SKU: M101-150-4TRM19 Categorías: Combinadores, Filtros y Sistemas para RF, Radiocomunicación Brand: TELEWAVE, INC

$769,786.38 MXN IVA incluido+ Envío Gratis

Agotado

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Combinador TELEWAVE para 148-174 MHz, 4 Canales, montado en rack 19".

Rango de frecuencia: 148-174 MHz.
Numero de canales: 4
Wattmetro en panel para monitoreo de potencia para entrada / salida.
Montaje de rack de 19" con cavidades de 1/4 de onda.
Pérdida por inserción (max.): 3.8 dB.
Potencia de entrada: 125 Watt.
Aislamiento entre TX-TX: 75 dB
Aislamiento Antena-TX: 55 dB.
Separación TX-TX (min.): 105 kHz.
Cargas: 60 W para la segunda etapa del aislador (100 W opcional).
Conectores: N Hembra (4), rack EIA 19".

*Pregunte por Tiempo de Entrega.
