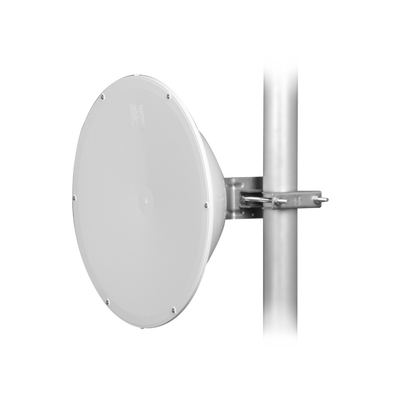

JRC-24DD-MIMO-JIROUS-Antena direccional de Alto Rendimiento/ Parábola profunda para mayor aislamiento al ruido / 24.5 dBi / (4.9 – 6.4 GHz) / Conectores N-Hembra / Fácil Montaje y Soporte de acero inoxidable / Radomo Incluido

SKU: JRC-24DD-MIMO Categorías: Antenas, Direccionales, Redes y Audio-Video Brand: JIROUS

$3,879.35 MXN IVA incluido+$99.49 MXN de envio

Agotado

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Especificaciones Generales

Medida: 0.4 m (1 ft).
Polarización: Doble V/H.
Conectores: N-Hembra (x2).
Frecuencia: 4.9 – 6.4 GHz.
Ancho de haz: 9 °.
Front to Back Ratio (F/B): ≥ 40 dB.
Ganancia: 24.5 dBi.
VSWR: <1.5
Peso neto: N/A kg.
Velocidad de resistencia al viento operacional: N/A km/h.
Velocidad de sobre vivencia al viento: N/A km/h.

Antenas Backhaul de Alta Gama para Enlaces PTP

Antenas de alta gama en backhaul, diseñadas con material de súper alta calidad para trabajar en las condiciones más difíciles, saturación de ruido o ambiente salino. Diseño de frecuencia extendida de 4.9 a 6.1 y 11 GHz.

Enlaces Punto a Punto

Enlaces punto a punto de 24, 29, 32, 35 dBi para distancias desde 10 hasta 100 km, en frecuencia de 4.9 hasta 6.1 GHz

Antenas PTP de plato hondo diseñada para enlaces robustos de alta capacidad y para evitar la interferencia en el ambiente, ideal para el paso de internet, datos, telefonía IP o video vigilancia en diferentes sectores a distancia de 1 hasta 100 km

Enlaces punto a punto de 36, 37, 41 dBi para distancias desde 1 hasta 100 km, en frecuencia de 11 GHz.

Antenas PTP diseñadas para radios B11 y AF11 de plato hondo, para enlaces robustos de alta capacidad superando capacidades de hasta 1 Gbps. Ideales para evitar la interferencia en el ambiente. Su diseño y gran montaje ayudan a realizar y enlazar enlaces de 1 hasta 100 km

Accesorios para Antenas

Estabilizador para torre, montaje de acero inoxidable, gabinete NEMA para antena y adaptador para AF11 y antena Jirous.

Información adicional

Peso	2.3 kg
