Thumbnail

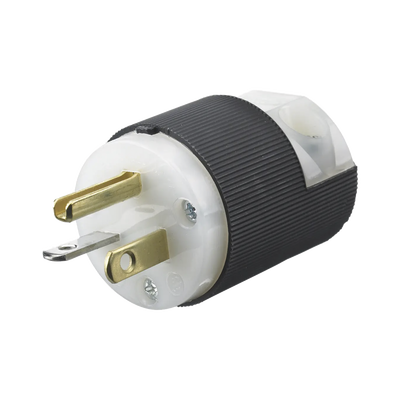

HUB-HBL5366C-HUBBELL-Clavija Entrada Recta/ 20 A 125 V/ 2 Polos 3 Hilos/ Nema 5-20 P/ Grado Industrial- Comercial.

SKU: HUB-HBL5366C Brand: HUBBELL

$330.89 MXN IVA incluido+$99.49 MXN de envio

103 disponibles

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Enchufe de entrada recta /20 A 125 V CA /2 polos 3 hilos / Nema 5-20P /Grado Comercial – Industrial

Especificaciones:

Grado	Industrial / Comercial
Color	Blanco y negro
Potencia – máx	1
Material	Policarbonato
Número de polos	2 polos
Temperatura de operación	Máxima continua 75°C y mínima -40°C sin impactos.
Rendimiento	Eléctrico – Interrupción de corriente – Certificado para interrupción de corriente a corriente nominal completa Eléctrico – Voltaje dieléctrico – Soporta un mínimo de 2000 V Ambiental – Inflamabilidad – UL 94 HB o mejor Ambiental – Idoneidad IP – IP20 Ambiental – Temperaturas de funcionamiento – Máximo continuo 75 °C mínimo -40 °C (sin impacto) Mecánico – Alojamiento de terminales – #18-10 AWG. Solo cable de cobre con soporte Mecánico – Identificación de terminales – Terminales identificados de acuerdo con UL 498 y CSA
Estilo	Estándar
Dimensiones	1,52 in x 1,52 in, 1,96 in
Altura	1,96 in
Largo	1,52 in
Ancho	1,52 in
Peso	0,15 lb
Rango de amperaje	20 A
Resistencia dieléctrica	Soporta 2000V mínimo
Fase	Fase única
Rango de voltaje	125 V
Número de hilos	3
Tamaño del cable	#18 AWG a #10 AWG
Estándares	Certificación CSA para C22.2 No. 42 Archivo 280 Alimentados. Especificaciones. W-C596G Cumple con NEMA® WD-6 Listado en UL para el archivo UL498 E1706
Nema	5 – 20 P

Información adicional

Peso	0.05 kg

WIRING_HBL5366C_spec
