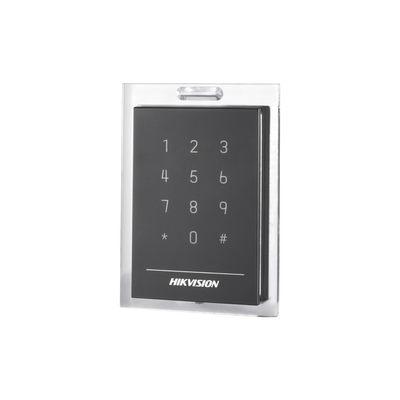

DS-K1101MK-HIKVISION-Lector de Tarjetas MIFARE y Contraseñas / Conexión Wiegand y RS-485 / Estético y Fácil de Utilizar / Indicador LED

SKU: DS-K1101MK Categorías: Control de Acceso, Lectoras y Tarjetas, MIFARE®/iCLASS (13.56 MhZ) Brand: HIKVISION

$348.08 MXN IVA incluido+$99.49 MXN de envio

507 disponibles

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Características principales:

Indicador LED de encendido y de estatus.
Soporta Protocolo Wiegand (W26/W34)
Lectura de tarjetas MIFARE® (Frecuencia: 13.56 Mhz).
Teclado para Contraseñas.
Proteccion IP64 (exterior protegido, no intemperie).
Montaje en pared.
Garantia:2 años

Tarjetas sugeridas: ACCESS-CARD-M1K/ ACCESS-CARD-M4K.

Características Físicas y Eléctricas:

Voltaje de operación: 12VCD, 0.5 A
Temperatura de operación: -20°C to +65°C (-4°F to 149°F)
Dimensiones:132.0mm × 92.3mm × 20.5mm (5.20” × 3.63” × 0.81′)
Peso: 0.14 Kg
Soporta conexión Wiegand o RS485.
DIP switch para direccionamiento RS485.

Características Destacadas:

Éste lector se conecta vía Wiegand a cualquier panel de control de acceso que soporte este protocolo, recomendados los paneles de la misma marca HIKVISION (cualquier serie) pero tambien compatibles con paneles ZKTeco, Rosslare, Suprema, AccessPRO etc.

También soporta conexión por RS485 para lograr mayores distancias (solo compatible con controladores Hikvision de la serie DS-K26).

Información adicional

Peso	0.219 kg
