5200UE - 5200UE-BELDEN-Cable para Seguridad y Sonido, 2 Conductores 16 AWG, BC, CMR - Relematic.mx - 5200UE-p

Thumbnail

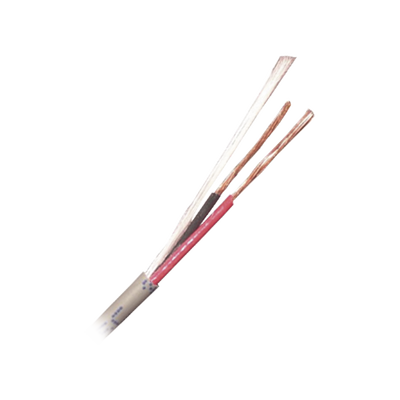

5200UE-BELDEN-Cable para Seguridad y Sonido, 2 Conductores 16 AWG, BC, CMR

SKU: 5200UE Categorías: Cables y Conectores, Para Alimentación y Electricidad, Videovigilancia Brand: BELDEN

$4,272.60 MXN IVA incluido+ Envío Gratis

Agotado

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Descripción del producto:

Cable de audio comercial y de seguridad, Riser-CMR, conductores de cobre desnudo trenzado de 2-16 AWG con aislamiento de poliolefina, cubierta de PVC con cordón de corte.

Caracteristicas:

Conductor nominal DCR: 4.2 ohmios / 1000 pies
Capacitancia Conductor a Conductor: 23 pF / ft
Inductancia Nominal: 0.14 µH / ft
Aumento de temperatura 10C por conductor @ 25 ° C ambiente: 6.25 A

Caracteristicas fisicas y electricas:

Rango de temperatura: 75 ° C
Rango de temperatura de funcionamiento: -20 ° C a + 75 ° C
Peso del cable a granel: 24 lbs / 1000ft
Tensión máxima de tracción recomendada: 59 lbs.
Radio de curvatura mínimo / Eje menor: 2.0 in

Estándares:

NEC800
UL1666
IEC 60332-1-2

5200UE_techdata
