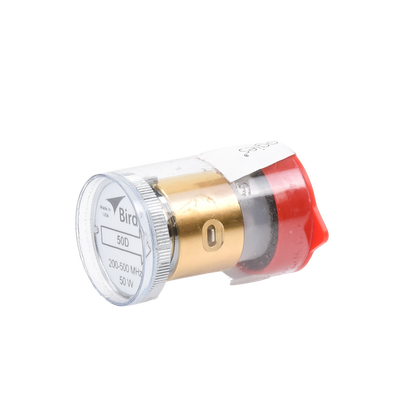

Elemento de 50 Watt para Wattmetro BIRD 43 en 200 a 500 MHz.
Elementos estándar
Model Number | Frequency Range (MHz) | Power |
---|---|---|
50H | 2-30 | 50 W |
100H | 2-30 | 100 W |
250H | 2-30 | 250 W |
500H | 2-30 | 500 W |
1000H | 2-30 | 1000 W |
2500H | 2-30 | 2500 W |
5000H | 2-30 | 5000 W |
5A | 25-60 | 5 W |
10A | 25-60 | 10 W |
25A | 25-60 | 25 W |
50A | 25-60 | 50 W |
100A | 25-60 | 100 W |
250A | 25-60 | 250 W |
500A | 25-60 | 500 W |
1000A | 25-60 | 1000 W |
5B | 50-125 | 5 W |
10B | 50-125 | 10 W |
25B | 50-125 | 25 W |
50B | 50-125 | 50 W |
100B | 50-125 | 100 W |
250B | 50-125 | 250 W |
500B | 50-125 | 500 W |
1000B | 50-125 | 1000 W |
5C | 100-250 | 5 W |
10C | 100-250 | 10 W |
25C | 100-250 | 25 W |
50C | 100-250 | 50 W |
100C | 100-250 | 100 W |
250C | 100-250 | 250 W |
500C | 100-250 | 500 W |
1000C | 100-250 | 1000 W |
5D | 200-500 | 5 W |
10D | 200-500 | 10 W |
25D | 200-500 | 25 W |
50D | 200-500 | 50 W |
100D | 200-500 | 100 W |
250D | 200-500 | 250 W |
500D | 200-500 | 500 W |
1000D | 200-500 | 1000 W |
2500D | 200-500 | 2500 W |
5E-400 | 400-800 | 5 W |
10E-400 | 400-800 | 10 W |
25E-400 | 400-800 | 25 W |
50E-400 | 400-800 | 50 W |
100E-400 | 400-800 | 100 W |
250E-400 | 400-800 | 250 W |
500E-400 | 400-800 | 500 W |
1000E-400 | 400-800 | 1000 W |
5E-800 | 800-1000 | 5 W |
10E-800 | 800-1000 | 10 W |
25E-800 | 800-1000 | 25 W |
50E-800 | 800-1000 | 50 W |
100E-800 | 800-1000 | 100 W |
250E-800 | 800-1000 | 250 W |
Peso | 0.06 kg |
---|
