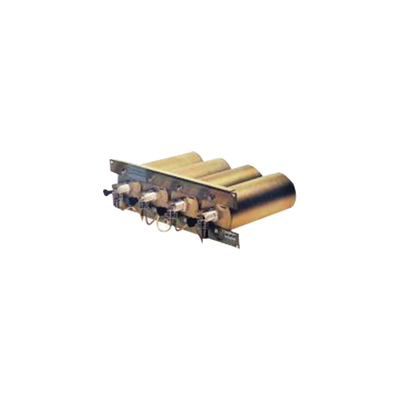

28-89-01A-BIRD TECHNOLOGIES-Duplexer Pasa Banda-Rechazo de Banda, 806-869 MHz, 4 Cavidades (4″ Diametro), 45 MHz, N Hembras.

BIRD TECHNOLOGIES

SKU: 28-89-01A Categorías: Duplexers, Filtros y Sistemas para RF, Radiocomunicación Brand: BIRD TECHNOLOGIES

$27,571.70 MXN IVA incluido+ Envío Gratis

Agotado

¡Envíos en tiempo récord!

Paga rápido y seguro

Descripción

Duplexer Pasa Banda-Rechazo de Banda, 806-869 MHz, 150 Watt.

Tecnología Vari-Notch para optimizar las especificaciones de aislamiento.
Banda de Frecuencia: 806-869 MHz.
Cavidades: 4 (4′ Diámetro).
Separación Tx-Rx (min.): 45 MHz.
Pérdida por inserción: 0.8 dB.
Potencia de Entrada (máx.): 150 Watt.
Aislamiento: 90 dB.
Impedancia / VSWR: 50 Ohm / 1.3:1
Montaje: Diseñados para Rack 19′.
Conectores: N Hembra.
Rango de temperatura: -40°C a +80ºC.
Dimensiones (Alto-Ancho-Fondo): 133 x 483 x 76.2/165 mm (5.25′ x 19′ x +3’/6.5′)

*Pregunte por tiempo de entrega.

Información adicional

Peso	5.1 kg
